| Dimensional | |||||
| Width (in) | 2.8 | ||||
| Length (in) | 21.3 | ||||
| Height (in) | 4.25 | ||||
| General | |||||
| Weight lbs | 7.5 | ||||
| Warranty | 5-year limited warranty; 1 year on battery and charger; Lifetime on INFINITY DRIVE® | ||||
| Product Description | Battery Actuated Crimping Tool, Hydraulic Self Contained, 6 Ton Output Force, 10 AWG(Sol)-500 kcmil Copper, 14 AWG(Sol)-350 kcmil Aluminium, 14 AWG(Sol)-4/0 ACSR, W and X Dies, 18V Lithium Ion | ||||
| Approvals / Certifications | |||||
| ROHS Compatible | Exempt | ||||
| CULUS | N | ||||
| Physical | |||||
| Pressure (Operating) | 7800 | ||||
| Crimp Force | 6 tons (5.4 metric tons) | ||||
| Force Developed | 6 tons | ||||
| Operating Voltage | 18 Volt Lithium-ion | ||||
| Other Features | |||||
| Recharge Time | 30 minutes | ||||
| UPC | 781810528860 | ||||
| Accepts Dies | Y | ||||
| Tool Type | Dies Required | ||||
| Battery Type | Li-ION | ||||
Burndy, Herramientas de baterías

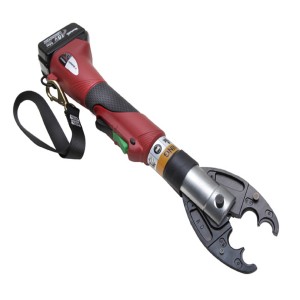

PATMD6LI
Battery Actuated Crimping Tool, Hydraulic Self Contained, 6 Ton Output Force, 10 AWG(Sol)-500 kcmil Copper, 14 AWG(Sol)-350 kcmil Aluminium, 14 AWG(Sol)-4/0 ACSR, W and X Dies, 18V Lithium Ion.
Valoraciones
No hay valoraciones aún.
