| Dimensional | |||||
| Width (in) | 3.5 | ||||
| Length (in) | 14.5 | ||||
| Height (in) | 13.75 | ||||
| General | |||||
| Weight lbs | 16.3 | ||||
| Warranty | 5 years on tool; 1 year on battery and charger; Lifetime on INFINITY DRIVE® | ||||
| Product Description | Battery Actuated Crimping Tool, Hydraulic Self Contained, 11 Ton Output Force, 6 AWG-1000 kcmil Copper, 6 AWG-750 kcmil Aluminium, Dieless, 18V Lithium Ion | ||||
| Approvals / Certifications | |||||
| ROHS Compatible | Exempt | ||||
| CULUS | N | ||||
| Physical | |||||
| Pressure (Operating) | 7800 | ||||
| Crimp Force | 6 tons (5.4 metric tons) | ||||
| Force Developed | 12 tons | ||||
| Operating Voltage | 18 VDC | ||||
| Other Features | |||||
| Recharge Time | 30 minutes | ||||
| UPC | 781810505489 | ||||
| Accepts Dies | N | ||||
| Tool Type | Dieless | ||||
| Battery Type | Li-ION | ||||
Burndy, Herramientas de baterías

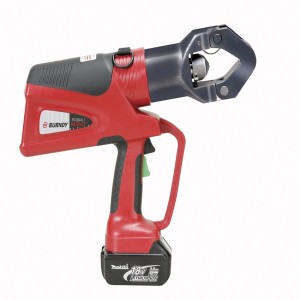

PAT644LI
Battery Actuated Crimping Tool, Hydraulic Self Contained, 11 Ton Output Force, 6 AWG-1000 kcmil Copper, 6 AWG-750 kcmil Aluminium, Dieless, 18V Lithium Ion.
